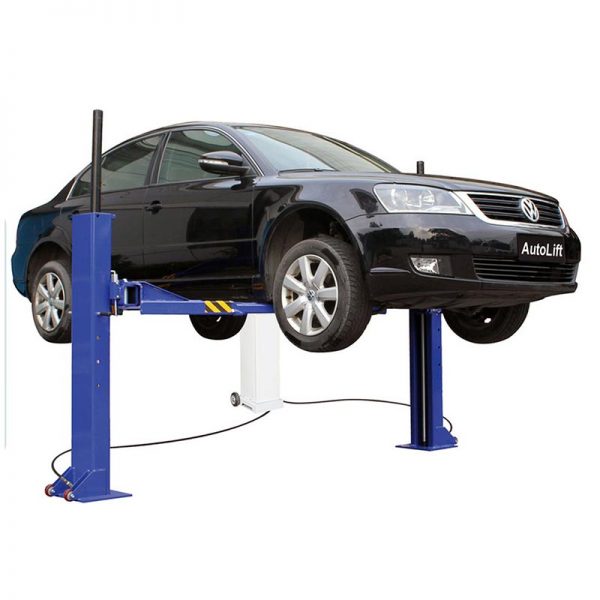

Mid rise AutoLift 167212E -2 post movable vehicle hoist for domestic application
$3,640.00
2,730kg Lifting Capacity
Ideal usage: Home users for DIY vehicle maintenance.
The AutoLift 167212E is designed for domestic use and fits in a standard-height residential garage with a lifting capacity of 2730kg / 2.7 tonnes. Moveable in design the hoist once unbolted has conveniently mounted wheels for easy relocation or storage when not in use. This mid-rise vehicle hoist has a maximum lift height of 1243mm with adaptors fitted (adaptors included) and provides wheels-free convenience for quick brake and tyre service. The AAQ 167212E vehicle hoist features two-stage asymmetric telescopic arms, socket type pad holders, quick connect/disconnect hydraulic couplers, and rugged safety lock bars.
We ship Australia Wide see the Shipping Tab for freight details and prices.
WHAT'S INCLUDED
- 2 post hoist complete with 15amp lead and plug (prewired)
- Fixing anchors
- Single-phase/240v 15amp Power Unit
- Lift adapters
- Installation Manual
What’s Not Included?
- Installation
- Hydraulic Oil
Workshop requirements
- 150mm steel mesh reinforced concrete (25-30 MPA)
- Minimum Ceiling height of 2.3m
Warranty and Certification
- 5-year structural warranty*
Features
• Ideal for standard height residential garages
• Conveniently stores out of the way.
• Provides wheels free convenience for quick brake and tyre service
• Easily converts to a full service motorcycle lift or working platform
• Ideal for DIY service in a domestic application.
• Quick connect/ disconnect hydraulic couplers, unique gear flow driver, keeps lift level even if load balance pressure changes.
• Rugged safety lock bars for extra assurance.
Specifications
• Height Overall: 2260 mm
• Column height: 1625 mm
• Max. lifting height: 1143mm (Pad only) 1245 mm (with 3rd adapter)
• Low pad height: 89 mm
• Lowest locking position: 610 mm
• Highest locking position: 1016 mm
• Lifting capacity: 2730 kg
• Power: 240V/50Hz/1Phase (15Amp)
• Net weight: 370 kg
• Gross weight: 400 kg
• Packing size: 2000mm*520mm*720mm
FAQ's
Do the hoist columns need to bolted down?
Yes during operation the columns need to be bolted down using the supplied fasteners.
How many fasteners hold down the columns?
5 fasteners per column.
Can the hoist be permantly mounted?
Yes the hoist columns can be permantly mounted.
Shipping Info & Prices
AAQ offer free shipping to the following Freight Depots, the order must be collected from the depot within 14 days of its arrival.
- Regency Park, SA
- Spotswood, VIC
- Smithfield, NSW
- Redbank, QLD
- Bassendean, WA
We can only deliver to a residential or business address if a forklift is on site to unload, if no forklift is available the hoist can be collected from the nearest depot. See the list of depots below for a freight price, simply select the nearest depot at checkout for freight charges to be applied to your order.
If your premises has a forklift and is within 20km of a listed depot, simply select the depot at checkout and add the address in the order notes. For freight prices to locations not listed below please contact us for a quote.
VIC Depot Locations
| Bairnsdale | 3875 | $270.00 |
| Ballarat | 3350 | $210.00 |
| Benalla | 3672 | $270.00 |
| Bendigo | 3550 | $270.00 |
| Cobram | 3644 | $237.60 |
| Echuca | 3564 | $270.00 |
| Hamilton | 3300 | $270.00 |
| Horsham | 3400 | $374.40 |
| Lara | 3212 | $210.00 |
| Leongatha | 3953 | $237.60 |
| Mansfield | 3722 | $384.00 |
| Mildura | 3500 | $384.00 |
| Mooroopna | 3629 | $374.40 |
| Morwell | 3840 | $384.00 |
| Portland | 3305 | $270.00 |
| Seymour | 3660 | $270.00 |
| Swan Hill | 3585 | $384.00 |
| Wangaratta | 3677 | $374.40 |
| Warrnambool | 3280 | $374.40 |
| NSW Depot Locations | ||
| Albury | 2640 | $288.00 |
| Armidale | 2350 | $294.00 |
| Bega | 2550 | $264.00 |
| Berkeley Vale | 2261 | $150.00 |
| Broken Hill | 2880 | $252.00 |
| Cardiff | 2285 | $150.00 |
| Cowra | 2794 | $264.00 |
| Dubbo | 2830 | $264.00 |
| Goulburn | 2580 | $264.00 |
| Griffith | 2680 | $288.00 |
| Gunnedah | 2380 | $288.00 |
| Inverell | 2360 | $432.00 |
| Kelso | 2795 | $306.00 |
| Moama | 2731 | $432.00 |
| Moree | 2400 | $432.00 |
| Moss Vale | 2577 | $306.00 |
| Mudgee | 2850 | $306.00 |
| Muswellbrook | 2333 | $264.00 |
| Narrabri | 2390 | $432.00 |
| Orange | 2800 | $306.00 |
| Parkes | 2870 | $288.00 |
| Port Macquarie | 2444 | $288.00 |
| South Grafton | 2460 | $432.00 |
| South Lismore | 2480 | $432.00 |
| Tamworth | 2340 | $288.00 |
| Taree | 2430 | $288.00 |
| Thornton | 2322 | $150.00 |
| Toormina | 2452 | $300.00 |
| Unanderra | 2526 | $156.00 |
| Wagga Wagga | 2650 | $288.00 |
| QLD Depot Locations | ||
| Arundel (Gold Coast) | 4214 | $120.00 |
| Bohle (Townsville) | 4818 | $192.00 |
| Bundaberg | 4670 | $180.00 |
| Charleville | 4470 | $396.00 |
| Dalby | 4405 | $228.00 |
| Emerald | 4720 | $342.00 |
| Gladstone | 4680 | $228.00 |
| Kunda Park (Sunshine Coast) | 4556 | $138.00 |
| Maryborough | 4650 | $180.00 |
| Mount Isa | 4825 | $354.00 |
| Paget (Mackay) | 4740 | $192.00 |
| Portsmith (Cairns) | 4870 | $228.00 |
| Rockhampton | 4700 | $228.00 |
| Roma | 4455 | $228.00 |
| Stanthorpe | 4380 | $228.00 |
| Toowoomba | 4350 | $180.00 |
| Warwick | 4370 | $228.00 |
| SA Depot Locations | ||
| Berri | 5343 | $252.00 |
| Monarto | 5254 | $192.00 |
| Mount Gambier | 5291 | $228.00 |
| Port Augusta | 5700 | $252.00 |
| Port Lincoln | 5606 | $264.00 |
| Port Pirie | 5540 | $204.00 |
| Whyalla Norrie | 5608 | $252.00 |
| WA Depot Locations | ||
| Albany | 6330 | $138.00 |
| Broome | 6725 | $240.00 |
| Bunbury | 6230 | $120.00 |
| Busselton | 6280 | $120.00 |
| Collie | 6225 | $180.00 |
| Geraldton | 6530 | $138.00 |
| Kalgoorlie | 6430 | $138.00 |
| Karratha | 6714 | $228.00 |
| Manjimup | 6258 | $228.00 |
| Margaret River | 6285 | $228.00 |
| NT Depot Locations | ||
| Alice Springs | 870 | $300.00 |
| Darwin | 871 | $210.00 |
| Katherine | 850 | $372.00 |
| ACT Depot Locations | ||
| Fyshwick | 2609 | $178.80 |
| TAS Depot Locations | ||
| Devonport | 7310 | $229.20 |
| Hobart | 7000 | $238.80 |
| Launceston | 7250 | $236.40 |
