1,360 kg Lifting Capacity
Ideal usage: Automotive Workshops

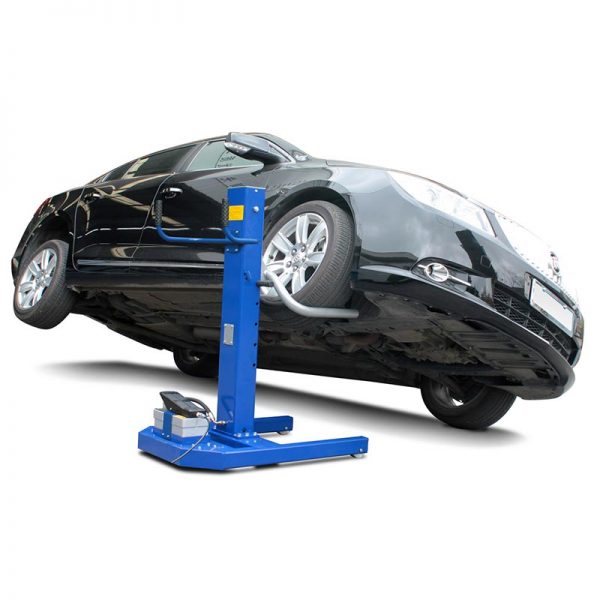

The AutoLift 182093 single post mobile column lift has a maximum lift capacity of 1360kg / 1.36 tonnes and can reach a maximum lift height of 750mm. The easy-to-use lifting function is ideal for mechanical repairs, panel work, and spray painting. Fitted with an air-over hydraulic foot pump and a manual locking pin the AAQ 182093 lift is a great cost-effective and easy to use option for fast lifting of vehicles.
We deliver Australia Wide see the Delivery Info & Prices Tab for more information.
What's Included
- Mobile single post lift
- Single phase 15amp unit
- Assembly Instructions
What’s Not Included?
- Assembly
- Hydraulic Oil
- Air Connections (60-90PSI is required)
Workshop requirements
- 100mm flat level concrete surface is required
Warranty and Certification
- 5-year structural warranty*
Features
• For multi use applications such as lifting a vehicle on its front or rear wheel.
• Ergonomic working position eliminates squatting or the use of ladders for hard to reach places on a vehicle,
• For mechanical repair, bodywork, repainting and more.
• Easy to operate air over hydraulic foot pump.
• Manual locking pin for safety
Specifications
• Lifting capacity: 1360 kg
• Max vehicle weight: 2720 kg
• Lifting height: 102 -750 mm
• Max lifting time: 30 seconds
• Max pump pressure: 40 Mpa
• Height overall: 1320 mm
• Footprint: 995 x 714 mm
• Net weight: 128kg
• Gross weight: 135kg
• Packing Size: 1230*750*380mm
Delivery Info & Prices
AAQ offer free delivery to the following Freight Depots, the order must be collected from the depot within 14 days of its arrival.
- Regency Park, SA
- Spotswood, VIC
- Smithfield, NSW
- Redbank, QLD
- Bassendean, WA
