Ideal usage: Automotive Workshops

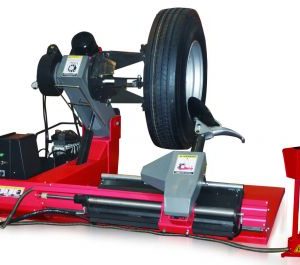

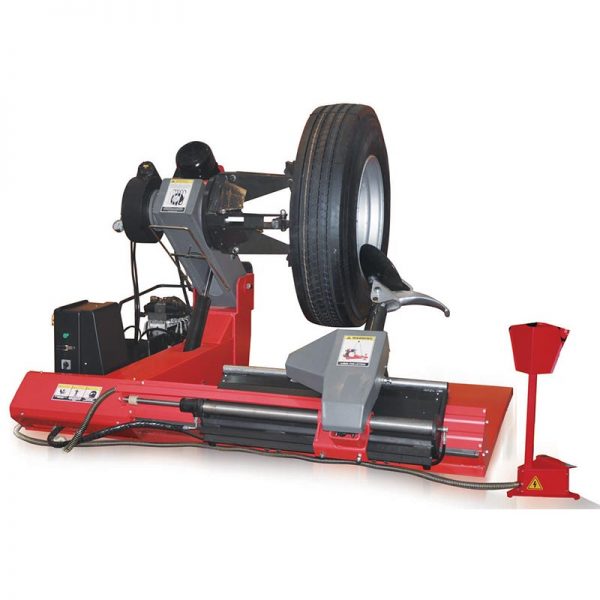

Extendable to a massive 56″ with extensions, this truck tyre changer has been specifically designed to mount and demount truck, bus, tractor and earthmoving tyres. This automatic tyre changer features a 415V, 3 phase electric hydraulic pump and forward & reverse operating chuck with 2 rotational speeds. It also features a movable control unit with joystick for easy operation.
Max wheel diameter: 2500mm
Clamping capacity: 14-56″
Specifications
• Rim clamping capacity: 14-42” (355 – 1066mm)
• With Extensions: 42-56” (1066mm – 1422mm)
• Max. wheel diameter: 90” (2300 mm)
• Max. wheel width: 43* (1100mm)
• Operating pressure: 50 – 130 bar
• Power supply: 415V /50Hz / 3Phase
• Air supply: 8-10 Bar
• Gearbox motor: 2.4-3.0Kw / 2 speeds
• Motor power: 1.1KW
• Noise level: <75dB
• Packing Size: 2280 mm x 2070 mm x 1070 mm
• Net weight: 1035 kg
Features
• Self centering hydraulic clamping chuck rotating with two speeds
• Quick positioning and locking mount / demount working arm
• Clockwise and counder clockwise rotation
• Control unit on movable stand for easy use, optional remote control unit
• Serves most kinds of trucks, tractor, bus and earthmoving tyres, up to 56” with extensions
