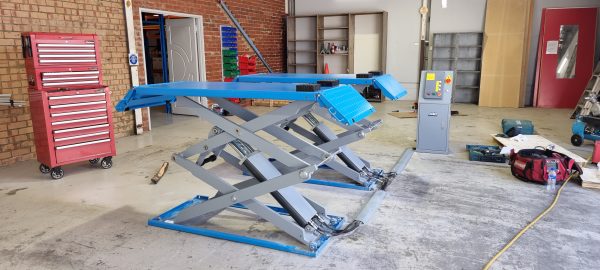

The 3T Full Rise Above Ground Heavy Duty Fixed Scissor Lift (AL-3000AG) is a perfect addition to a busy workshop and is perfect for tyre and brake work, vehicle detailing, and vehicle maintenance. With a lifting capacity of 3000kg / 3 Tonnes and a huge lifting height of 1800mm, this scissor lift is one of the best on the market.
Fitted with features such as extendable platforms, easy-to-remove drive-on ramps, low platform height (110mm) for lower vehicles, and cable-operated remote control combined with air-operated safety locks with multiple locking positions this scissor lift has it all.
Available in single or three-phase power units and equipped with 24v low voltage control box.
The AL-3000AG hoist is an Australian Standard WorkSafe design registered vehicle scissor lift.
| Power unit option | Single Phase, Three Phase |
|---|
WHAT'S INCLUDED
- Scissor lift and power unit cart
- Single phase 15amp or Three phase power unit
- Installation Manual
What’s Not Included?
- Installation
- Hydraulic Oil
- Electrical and Air Connections (60-90PSI is required)
Workshop requirements
- 200mm flat level concrete surface is required
Warranty and Certification
- 5-year structural warranty*
Features
• WorkSafe Design Registered
• Full rise, drive on, drive off scissor lift with low profile ramps
• Extendable platform
• 4 cylinder (2 master & 2 slave)
• Ideal for low profile vehicles, 110 mm lowered height
• East to install above ground installation
• Open platform for ease of servicing.
• 24V low voltage control box
• Perfect for tyre & brake work, vehicle inspections and general service
Specifications
• Lifting capacity: 3000 kg
• Lifting height: 1800 mm
• Minimum height: 110 mm
• Lifting time: 50 sec
• Width overall: 2100 mm
• Length overall: 1465 – 2083 mm
• Rated oil pressure: 20 Mpa
• Air pressure: 6-8 bar
• Power: 240V, 1Ph or 415V, 3Ph
• Gross weight: 1045 kg
• Packing size: 1150*560*450 mm
