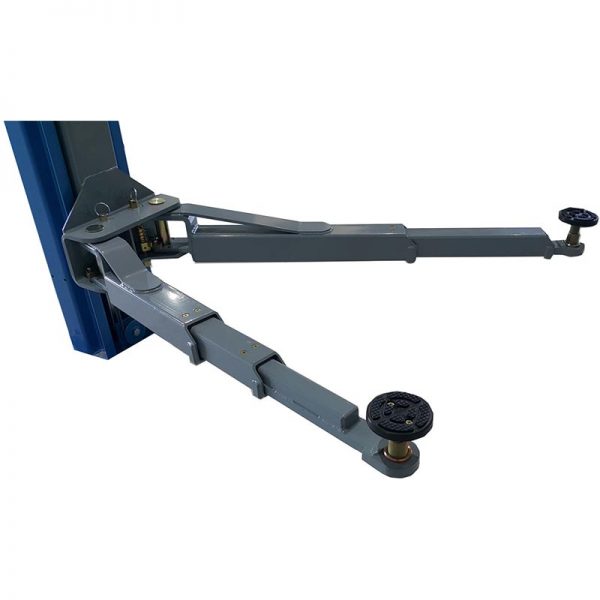

Telescopic arms
For those hard-to-reach lifting points, the AL-9000DD is fitted with telescopic arms. The longer arm has a two-stage extension whilst the shorter arm has a 3 stage extension.

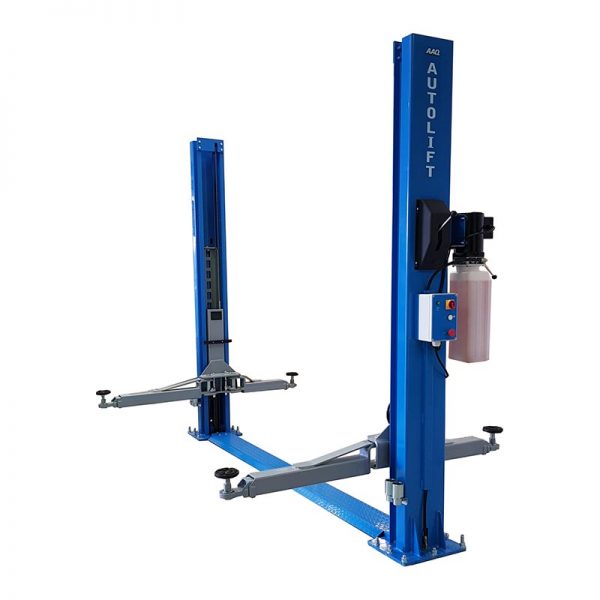

2 Post Car Hoist – Baseplate Hoist – 4000kg / 4 tonne Lifting Capacity
The AutoLift AL-9000DD 2 post car hoist (baseplate) is designed for busy workshops with a lifting capacity of 4000kg / 4 tonnes and a lifting height of 1925mm with 60mm adaptors fitted (60mm adaptors included). The base plate design of the AL-9000DD is ideal for servicing high roof vans, large 4wds, and SUVs.
- Worksafe Design Registered gives you the peace of mind knowing the car hoist complies with Australian Standards 1418.9
- Heavy Duty Hydraulic cylinders mounted within the columns drive the carriages for a smooth seamless lifting of the hoist arms
- Powerful 2.2kw 15amp single phase hydraulic power unit
- Two-Stage Asymmetric telescopic arms fitted with arm locks
- Safety Locking Ladders fitted to each column (100mm increments) with manual lock release operation
- Two-stage screw adjustable pads
- Safety Limit Switch cuts out the hydraulic power unit when maximum height is reached.
- Low Voltage 24volt controls for added safety
Adjustable Pads & Height adaptors
The two-stage adjustable pads fitted to the 9000DD allow for 50mm of adjustment and for those lifted 4WD the included 100m height adaptors increase the lifting height of the vehicle.

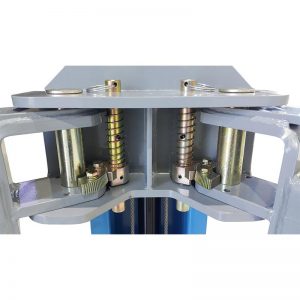

Auto locking arms
We take safety seriously here at AAQ that’s why we fitted automatic locking arms to our range of 2 post car hoists. Once the lift is operated and the arms lift off the ground the locks engage locking the arms in place.

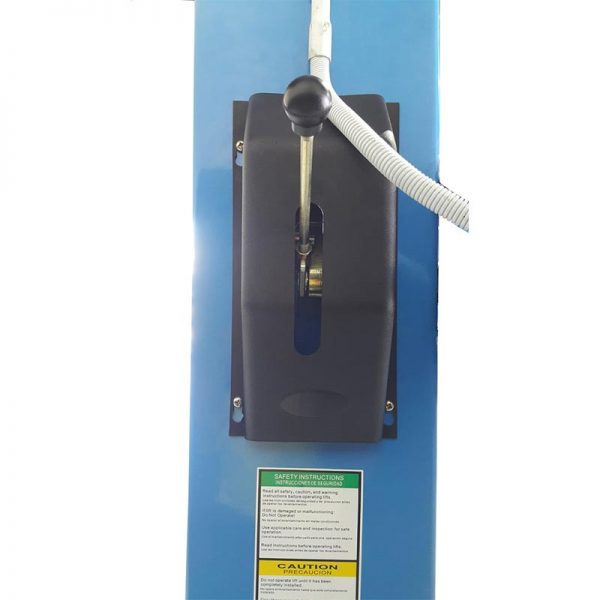

Single-sided safety lock release lever disengages the locking mechanism when lowering the vehicle.

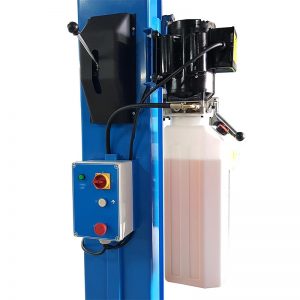

Single or THREE-PHASE options
The AL-9000DD can be purchased in either single phase 240v 15amp or 3 phase 415v. The powerful hydraulic power units provide enough pressure to lift up to 4000kg / 4 Tonnes, perfect for large 4WD such as Toyota Landcruisers or Nissan Patrols.

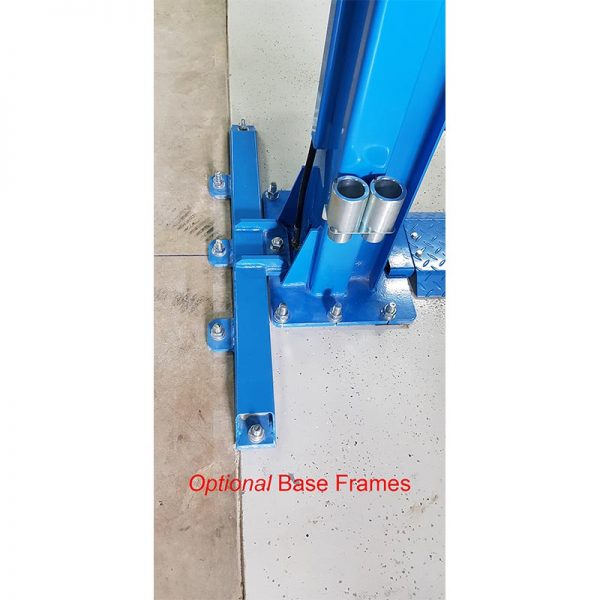

engineered base frames
Optional engineered base frames are available and are recommended to be used if your concrete floor does meet the recommended 150mm thickness.
Concrete requirements
150mm thick concrete steel mesh reinforced (25-30 MPA)
DON’T forget hydraulic oil!
Hydraulic oil is not supplied with the hoist, the AL-9000DD requires 12-15L of ISO 32 Grade Hydraulic Oil.
We can supply 5L 32 grade Hydraulic Oil for pick up only, we cannot freight oil.
2 Post Hoist dimensions

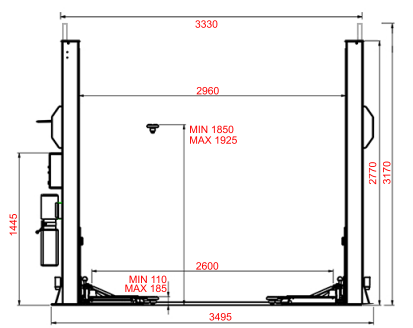

2 Post Baseplate Hoist Dimensions
To install an AL-9000DD 2 post car hoist into your workshop or garage you will require 3.2m high roof at a minimum. Be sure you have adequate clearance before purchasing.
2 Post Baseplate Hoist Manual
Delivery Available Australia Wide! See the Delivery Info Tab for pricing
WHAT'S INCLUDED
- 2 post hoist complete with 15amp lead and plug (prewired)
- M18 concrete anchor through bolts
- Single phase/240v 15amp motor
- 60mm lift adapters
- Installation Manual
What’s Not Included?
- Installation
- Hydraulic Oil
Workshop requirements
- 150mm steel mesh reinforced concrete (25-30 MPA)
- Minimum Ceiling height of 3.4m
(Engineered base frames available for 100 – 125mm concrete footing)
Warranty and Certification
- 5-year structural warranty*
- Australian Standard WorkSafe Design Registered
Features
• WorkSafe Design Registered
• Easy to operate manual lock release
• Economical and reliable
• Direct drive high pressure hydraulic cylinder for low maintenance
• Automatic arm locking system
• Power cable and hydraulic hose inside column
• Asymmetric telescope arms
• Low voltage control box can be purchased as an optional extra
Specifications
• Height overall: 3350 mm (inc. lock ladders)
• Width overall: 3495 mm
• Drive through width: 2600 mm
• Lifting height: 110 -1925 mm
• Lifting capacity: 4000 kg
• Lifting speed: 50 – 60 seconds
• Power: 240V/50Hz/1Ph
• Gross weight: 690 kg
• Packing Size: 2850*940*450 mm
Delivery Info & Prices
AAQ offer free delivery to the following Freight Depots, the order must be collected from the depot within 14 days of its arrival.
- Regency Park, SA
- Spotswood, VIC
- Smithfield, NSW
- Redbank, QLD
- Bassendean, WA
We can only deliver to a residential or business address if a forklift is on site to unload, if no forklift is available the hoist can be collected from the nearest depot. See the list of depots below for a freight price, simply select the nearest depot at checkout for freight charges to be applied to your order.
