Safety Locks
Safety locks are fitted to each column (100mm locking interval) with secondary “Auto-engage” locks in the event of cable slack or failure.

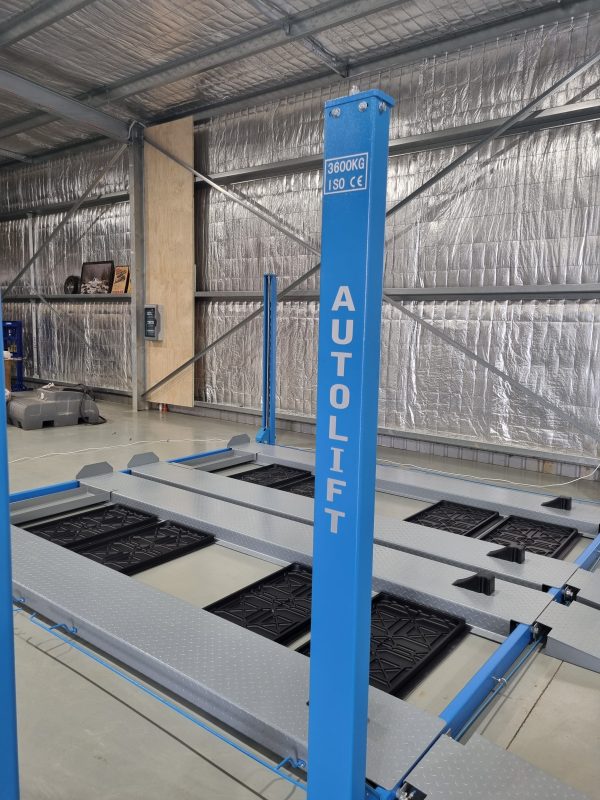

4 Post Storage hoist – 3600kg / 3.6 Tonne
AutoLift 4 post storage hoist is the perfect addition to your home garage or workshop, ideal for storage or vehicle repairs. The AL-10000TSWX has a lifting capacity of 3600kg / 3.6 tonnes and a maximum lifting height of 1950mm.
- Heavy Duty Hydraulic cylinder mounted below the platform and drives the cables for a smooth seamless lifting of the platforms

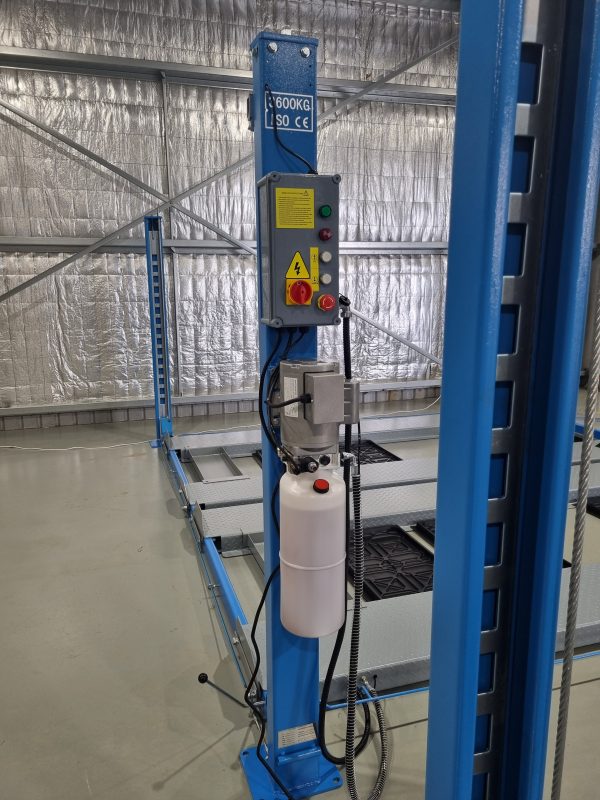

- Powerful 2.2kw 15amp single phase hydraulic power unit can be mounted in two locations
- Extra Large Slide Blocks fitted to each column to improve stability
- Safety Locking Ladders fitted to each column (50mm increments) with manual lock release operation
- Auto-engage secondary safety lock in the event of cable slack or failure.
- Safety Limit Switch cuts out the hydraulic power unit when maximum height is reached.
- Maximum Platform Lift Height of 1950mm gives ample space to store most sedans and medium SUVs under the platform
- Supplied with 8 x Drip Trays, 2 x Jacking Trays, and 4 x wheel stops.

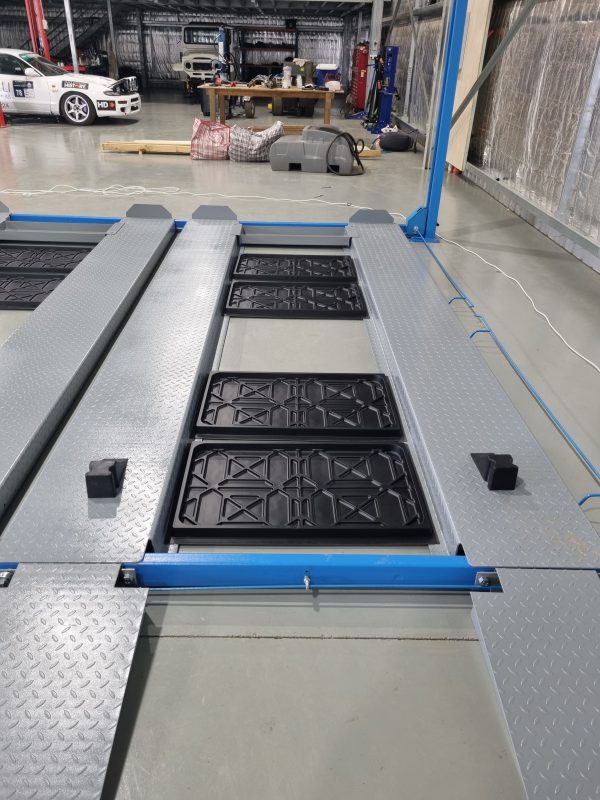

Drip TRAYS and Jacking plate
The AL-10000TSWX 4 post hoist comes with 8 plastic drip trays, 2 Jacking Trays, and 4 rubber wheel stops.
Ideal for low roof heights
Requires only 3.2m of roof height to lift a stand size sedan to full lifting height
DON’T forget hydraulic oil!
Hydraulic oil is not supplied with the hoist, the AL-10000TSWX requires 12 – 15L of ISO 32 Grade Hydraulic Oil.
We can supply 5L 32 grade Hydraulic Oil for pick up only, we cannot freight oil.
4 post hoist dimensions
4 Post Storage Hoist
To install an AL-10000TSWX 2 post hoist into your workshop or garage you will require a 3.2m high roof at a minimum. Be sure you have adequate clearance before purchasing.
Delivery Available Australia Wide! See the Delivery Info Tab for pricing
4 post storage hoist installation manual
WHAT'S INCLUDED
- 4 post hoist
- M18 concrete anchor through bolts
- Single phase 240v 15amp motor
- 8 x Plastic drip trays
- 2 x Jacking Trays
- 4 x Rubber Wheel Stops
- Installation Manual
What’s Not Included?
- Installation
- Hydraulic Oil
Workshop requirements
- 100mm steel mesh reinforced concrete (25-30 MPA)
- Minimum Ceiling height of 3.2m required
Warranty and Certification
- 5-year structural warranty*
Specifications
- Height overall: 2226mm
- Width overall: 5641mm
- Width between columns: 4189mm
- Length overall: 4439mm (without ramps)
- Lifting height: 122-1900mm
- Lifting capacity: 3600kg total vehicles
- Power: 240V/50Hz/1Ph (15Amp)
- Gross weight: 1900kg
- Packing size: 5600*720*560mm 1400kgs (Pack 1)
- Packing size: 4120*720*560mm 700kg (Pack 2)
Delivery Info and Prices
AAQ offer free delivery to the following Freight Depots, the order must be collected from the depot within 14 days of its arrival.
- Regency Park, SA
- Spotswood, VIC
- Smithfield, NSW
- Redbank, QLD
- Bassendean, WA
