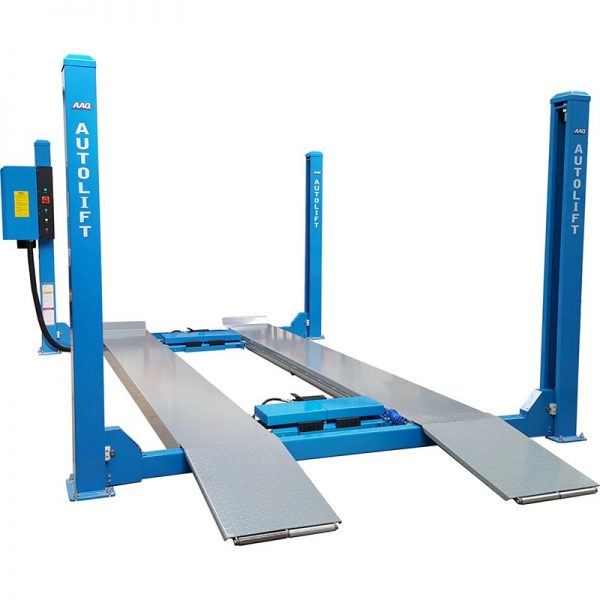

AutoLift AL-4000S2 – 4 post heavy duty vehicle hoist for automotive workshops
$8,750.00
4,000 kg Lifting Capacity
Ideal usage: Automotive Workshops and the Mining Industry
The AL-4000S2 heavy-duty vehicle hoist has been designed specifically for Automotive dealerships and the Mining Industry. With a lifting capacity of 4000kg / 4 tonnes and extra-long platforms (4.8m), the AL-4000S2 can accommodate a larger range of vehicles. Fitted with features such as 2 x 2000kg / 2-tonne air over hydraulic operated jacking beams, fully enclosed lifting cables and airlocks, fully enclosed power unit, and front-wheel stop this workhorse of a hoist is ready to tackle the busiest of workshops! Available in single or three-phase power units.
The AL-4000S2 vehicle hoist is an Australian Standard WorkSafe design registered 4 post vehicle hoist and is fitted with multi-position safety locks in each column.
Air requirement: 60-90 PSI.
Optional fully galvanised version available for vehicle wash down bays, contact us for pricing.
We deliver Australia Wide see the Delivery Info & Prices Tab for more information.
WHAT'S INCLUDED
- 4 post hoist
- M18 anchor bolts
- Single phase 240v 15amp or 3 phase 415v power units
- 2 x 2000kg /2 Tonne Jacking Beams
- Installation Manual
What’s Not Included?
- Installation
- Hydraulic Oil
- Electrical and Air Connections (60-90PSI is required)
Workshop requirements
- 125mm steel mesh reinforced concrete (25-30 MPA)
- Minimum Ceiling height of 3.2m required
(Warranty and Certification
- 5-year structural warranty*
- Australian Standard WorkSafe design registered
Features
• WorkSafe Design Registered
• Heavy duty construction
• Extra wide between columns
• Extra long rollers on run up ramps
• Top column cover caps
• Fully enclosed power unit
• Air operated jacking beams

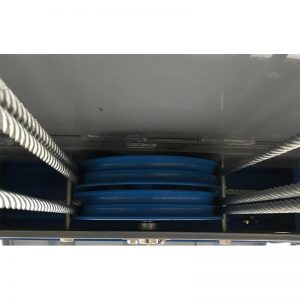

• Fully enclosed lifting cables and air safety locks
• Multi position safety locks in each column
• Single hydraulic cylinder mounted underneath runway
• Complete with 2 x2 tonne hydraulic jacking beams
Specifications
• Overall height: 2274mm
• Width overall: 3643 mm
• Length overall: 5775 mm
• Lifting height 158-1800 mm
• Lifting capacity: 4000kg
• Power: 415V, 3Ph or 240V, 1Ph
• Net weight: 1224kg
• Gross weight: 1240 kg
• Packing Size: 4700*700*730 mm
