Car Stacker AutoLift AL-1132 – stand alone or shared column

Car Stacker – 3,200 kg lifting capacity

The AL-1132 double car stacker can be used in domestic or commercial applications, they are WorkSafe Design Registered Australia-wide. The AL-1132 has an extra-wide 2200mm wide lifting platform to suit most sedans and SUVs and has a platform length of 4083mm. The hoist can be configured in stand-alone (Unit A) or shared columns for space-saving (Unit A & Unit B), ensuring the most practical and economic solution for your space.

• Worksafe Design Registered gives you the peace of mind knowing the car stacker complies with Australian Standards 1418.9
• Key lockable control panel switch for security and safety.
• Dual Two-Stage Heavy Duty Hydraulic cylinders mounted to the back of the columns drive the platform, heavy-duty balance chains are used to keep the platform level.
• Powerful 2.2kw 15amp single phase hydraulic power unit
• Powder-coated columns and carriages.
• Heavy-duty galvanised corrugated lift platform.
• Safety Locking Ladders fitted to each column (70mm increments) with electric lock release actuators and secondary anti-fall mechanical locks.
• Safety Limit Switch cuts out the hydraulic power unit when maximum height is reached.
• Photocell limit switch ensures that the hoist cannot be lowered whilst a vehicle is parked underneath the platform, minimising the risk of incorrect operation (optional)
• Low Voltage 24volt controls for added safety

Lift capacity – 3200kg

Upgraded over the single ram version the NEW AL-1132 is fitted with dual two-stage Heavy Duty hydraulic cylinders and Korean-made balance chains giving the AL-1132 car stacker the power to lift up to 3200kg. Perfect for sedans and SUVs.

Control Box

Low voltage 24v control box equipped with an emergency stop button and key-operated controls for added security and safety.

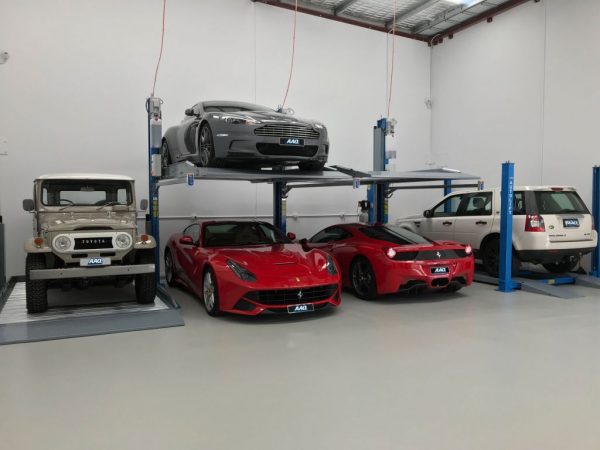

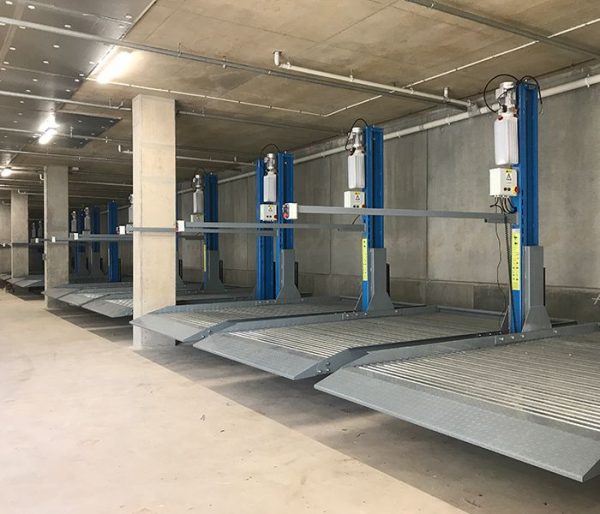

Shared Columns

The AL-1132 can be installed as a single unit or by “sharing” the column you can install multiple units saving space and cost.

DON’T forget hydraulic oil!

Hydraulic oil is not supplied with the hoist, the AL-1132 requires 10-12L of ISO 32 Grade Hydraulic Oil.

We can supply 5L 32 grade Hydraulic Oil for pick up only, we cannot freight oil.

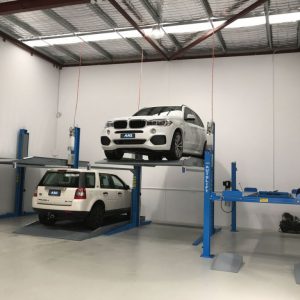

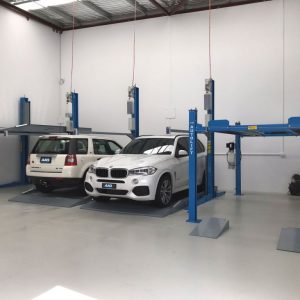

Double Car Stacker

To install an AL-1132 2 post car stacking hoist into your premises you will require a 3.8m high roof at a minimum to store standard size sedans. Be sure you have adequate clearance before purchasing.
