3,000 kg Lifting Capacity
Ideal usage: Automotive workshop

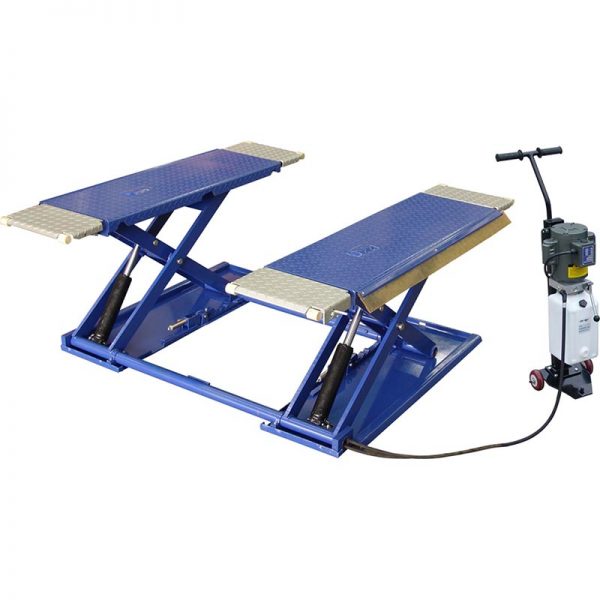

Designed for the busiest of mechanical workshops the AL-8803 heavy duty scissor lift has a lifting capacity of 3000KG /3 Tonnes and a maximum lift height of 1000mm. The ultra-low-profile ramps (105mm) are perfect for vehicles with low clearance to the underside and make tyre replacement, brake changes, and servicing a breeze. The AL-8803 scissor lift is fitted with extendable drive on-ramps to accommodate long wheelbase vehicles and lower torsion bars ensure stability and perfect synchronisation of the scissor platforms. The optional mobile kit features heavy-duty castor wheels for easy mobility.
The AL-8803 hoist is an Australian Standard WorkSafe design registered vehicle scissor lift and is fitted with an automatic pneumatic safety lock that engages when the lift is raised.
We deliver Australia Wide see the Delivery Info & Prices Tab for more information.
WHAT'S INCLUDED
- Scissor lift and power unit cart
- Single phase 15amp power unit
- Installation Manual
What’s Not Included?
- Installation
- Hydraulic Oil
- Electrical and Air Connections (60-90 PSI Required)
Workshop requirements
- 100mm flat level concrete surface is required
Warranty and Certification
- 5-year structural warranty*
- Australian WorkSafe Registered Design
Features
• WorkSafe Design Registered
• This mobile AL – 8803 is perfect equipment for tyre changing, quick service, etc.
• Optional mobile kit for easy mobility.
• Pneumatic operated mechanical lock engaged automatically when releases button.
• Torsion bars at bottom ensure stability and synchronization.
• 24V control for safety
• Extendable drove on ramps can be used as additional platforms for accommodating long base vehicles.
Specifications
• Minimum height: 105 mm
• Max lifting height: 1000 mm
• Lifting capacity: 3000 kg
• Lifting time: 30 sec (approx.)
• Power: 240 Volt / 1 Phase / 15Amp
• Air supply: 6-8 Kg/cm2
• Net weight: 500 kg
• Packing Size: 197 x 155 x 56 cm
Delivery Info & Prices
AAQ offer free delivery to the following Freight Depots, the order must be collected from the depot within 14 days of its arrival.
- Regency Park, SA
- Spotswood, VIC
- Smithfield, NSW
- Redbank, QLD
- Bassendean, WA
We can only deliver to a residential or business address if a forklift is on site to unload, if no forklift is available the hoist can be collected from the nearest depot. See the list of depots below for a freight price, simply select the nearest depot at checkout for freight charges to be applied to your order.
If your premises has a forklift and is within 20km of a listed depot, simply select the depot at checkout and add the address in the order notes. For freight prices to locations not listed below please contact us for a quote.
