AIr Operated locks
The AL-6435 uses air lock solenoids in each corner to engage the safety locks in the ladder when the desired lifting height has been reached. Auto-engage secondary locks are fitted as standard in the event of cable slack.

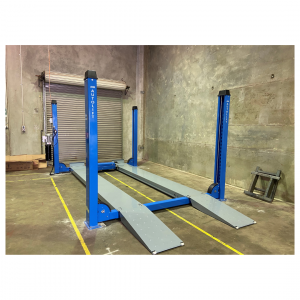

4 Post hoist – 4000kg / 4 Tonne
AutoLift 6435 4 post car hoist is the perfect addition to your home garage or workshop, ideal for storage or vehicle repairs. Our latest model of 4 post hoist the AL-6435 fills the gap between our entry-level AL-10000T and the Heavy-Duty AL-4000S2. The AL-6435 has a lifting capacity of 4000kg / 4 tonnes and a maximum lifting height of 1900mm and is fitted with a 2-ton air over hydraulic Jacking Beam
- Extra-long non-slip drive-on ramps, perfect for lowered cars.
- Heavy Duty Hydraulic cylinder mounted below the platform and drives the cables for smooth seamless lifting of the platforms
- Powerful 2.2kw 15amp single phase hydraulic power unit can be mounted in two locations
- Extra Large Slide Blocks fitted to each column to improve stability
- Safety Locking Ladders fitted to each column (100mm increments) with manual lock release operation
- Single point air lock safety release button
- Auto-engage secondary safety lock in the event of cable slack or failure.
- Safety Limit Switch cuts out the hydraulic power unit when maximum height is reached.
- Maximum Platform Lift Height of 1900mm gives ample space to store most sedans and medium SUVs under the platform
includes jacking beam
The AL-6435 is fitted with a 2000kg / 2-tonne jacking beam. The jacking beam is an air over hydraulic operated unit with an auto-engaging safety lock.
DON’T forget hydraulic oil!
Hydraulic oil is not supplied with the hoist, the AL-6435 requires 12 – 15L of ISO 32 Grade Hydraulic Oil.
We can supply 5L 32 grade Hydraulic Oil for pick up only, we cannot freight oil.
4 post hoist dimensions
4 Post Car Hoist
To install an AL-6435 4 post car hoist into your workshop or garage you will require a 3.2m high roof at a minimum. Be sure you have adequate clearance before purchasing.
Delivery Available Australia Wide! See the Delivery Info Tab for pricing
Delivery Available Australia Wide! See the Delivery Info Tab for pricingInstallation Manual
What's Included
- 4 post hoist
- M18 concrete anchor through bolts
- Single phase 240v 15amp motor
- 2 tonne Jacking beam with Adjustable Pads
- Installation Manual
What’s Not Included?
- Installation
- Hydraulic Oil
- Electrical and Air Connections (60-90PSI is required)
Workshop requirements
- 100mm steel mesh reinforced concrete (25-30 MPA)
- Minimum Ceiling height of 3.4m
(Warranty and Certification
- 5-year structural warranty*
- Australian Standard WorkSafe design registered
Specifications
Height overall: 2370 mm
• Width overall: 3089 mm (no motor)
• Width between columns : 2715 mm
• Length overall: 6058 (with ramps)
• Lifting height: 130-1900 mm
• Platform thickness: 110 mm
• Lifting capacity: 4000 kg
• Power: 240V/50Hz/1Ph (15 Amp)
• Gross weight: 1022 kg
• Packing size: 4900*550*720 mm (hoist @1000kg) 900*290*300 mm (carton @22kg)
