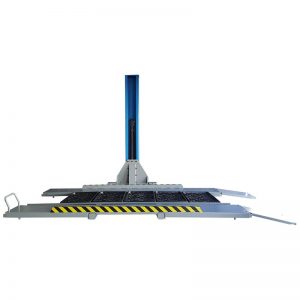

Single Post Car Hoist – 2,500 kg /2.5 tonne
The AutoLift 167255 fixed single post car hoist is perfect for the home garage or workshop with its low post height of 2800mm. With a lifting capacity of 2500kg / 2.5 tonne and a maximum lift height of 1960mm this single post car hoist is perfect for car storage or vehicle maintenance. Fitted with 3860mm platforms, hydraulic power unit, single hydraulic cylinder with heavy-duty lifting chain, safety locking mechanism, and removable plastic drip trays for under-car maintenance and repairs.
- Single Hydraulic cylinder drives a heavy-duty lifting chain.
- Powerful 2.2kw 240v 15amp power unit.
- Removeable drip trays for easy under-vehicle access.
- Space Saving design eliminates additional columns taking up space in your garage.

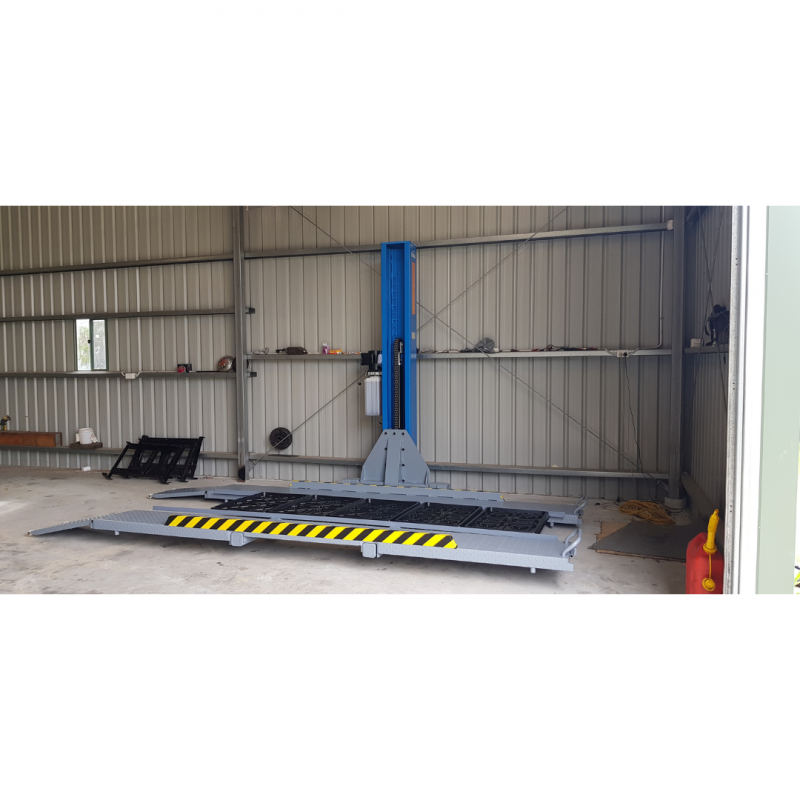

Recent Installations
Single Post Storage Hoist dimensions
Single Post Car Hoist Dimensions
To install an AL-167255 single post car hoist into your workshop or garage you will require 2.8m high roof at a minimum. Be sure you have adequate clearance before purchasing.
Installation Manual
Delivery Available Australia Wide! See the Delivery Info Tab for pricing
What's Included
- Single post hoist
- Single phase 15amp power unit
- Fixing anchors
- Installation Manual
What’s Not Included?
- Installation
- Hydraulic Oil
Workshop requirements
- 250-300mm flat level concrete surface is required
Warranty and Certification
- 5-year structural warranty*
Features
• Low post height caters for home installation
• Ideal for cars and trucks
• Space saving design
• Hydraulic power unit for smooth and quiet operation
• Single hydraulic cylinder combined with heavy duty lifting chain
• Removable panels for convenient under car access
Specifications
• Overall height: 2800 mm
• Overall width: 2850 mm
• Overall length: 4470 mm
• Lifting height: 0mm – 1960 mm
• Lifting capacity: 2500 kg
• Power: 230V/50Hz. 1 Phase, 15Amp
• Net weight: 1050 kg
• Gross weight: 1100 kg
• Packing Size: 4000*1000*550 mm
